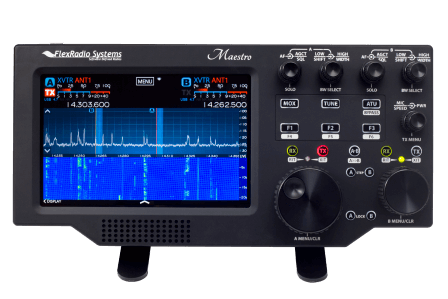

Maestro Control Console for the FLEX-6000

The Maestro™ — an intuitive, plug-and-play control console that directs the operation of any FLEX-6000 Signature Series transceiver without the need for a traditional PC.

Connect Maestro directly or through your local area network (LAN) to any Flex 6000 series transceiver and you are ready to operate.

External Monitor Connection
Improved WiFi 6
Optional Rechargeable Battery

Maestro places the most frequently used controls directly at your fingertips. Controls are labeled for intuitive operation and designed to minimize hand motion for the most common radio operations. Occasionally used controls are easily accessible on the large touch screen display bypassing the complexity of multi-function buttons and multi-level menus found on most transceivers. Like modern phones and tablets, capacitive touch control is provided on the large LCD display for intuitive pan, zoom, tune, and menu operation. CW Paddles can also be plugged into the Maestro to work directly with your FLEX-6000 series radio.

If you’ve ever longed for the moment when you could monitor the bands or work DX from a lounge chair by the pool or from the comfort of your leather recliner — the time is now. Maestro’s small footprint and minimal wiring clean up your operating position and let you mount the radio virtually anywhere in the shack or around the house, Its sleek, lightweight design makes it not only the envy of your peers but also easy to carry or pack.

Explore Maestro products →

Explore maestro FAQs →

Features

Radio in High Resolution

Never miss a QSO

8” High Definition 1920 x 1200 WUXGA Display
Multi-touch display
High-Resolution Panadapter and Waterfall
Up to two 7MHz spectrum displays
Optimized workflow
Large, Easy-to-read Text

Confusion Free Controls

Only the controls you need, only when you need them.

Ergonomically spaced / single-function controls
Intuitive Touch Screen Menus
Illuminated Buttons
Two full VFOs

Full Specifications

Specs

Weight: 96 oz
Width: 6 in
Depth: 20 in
Height: 10 in

Display/Touch Screen

Up to 2 simultaneous, real-time spectrum displays and waterfalls
Dual VFO Readouts
Display Type: Large 8.0″ In Plane Switching (IPS) display with touch screen
Display Resolution: 1920 x 1200 WUXGA Display

Input/Output

Microphone 1: Pseudo-balanced 8-pin RJ-45, dynamic or electret compatible
Microphone 2: Pseudo-balanced 1/8″ (3.5mm) TRS
Headphones: Stereo headphone jack, 1/8″ (3.5mm) TRS
Headphones Impedance: 16 Ohm at 25 mW, 32 Ohms at 13 mW with THD+N: 0.02%
Speaker: Internal 2W mono speaker
Powered Speaker Output: Stereo consumer line level or powered speaker output, 1/8″ (3.5mm) TRS
Line Output: Stereo consumer line level or powered speaker output, 1/8″ (3.5mm) TRS
Line Out/Powered Speaker Output Impedance: 600 Ohm, stereo unbalanced
Line Input: Pseudo-balanced line-in jack, 1/8″ (3.5mm) TRS
Key/Paddle Input: 1/8″ (3.5mm) TRS
PTT Input: 1/8″ (3.5mm) TS
DC Power Connector: Coaxial DC power connector, 2.1mm (cable included)

Communications Interfaces

Wi-Fi: Dual band 2×2 802.11a/b/g/n
Ethernet: 100/1000 Mbps

Mechanical

Without Feet:
Height: 6.75″ (17.1cm)
Width: 14″ (35.6cm)
Depth: 1.75″ (4.5cm)
Weight: Approximately 4 lbs. (1.8 kgs)

Electrical

Power: 10-15 VDC
Standard wall-mount AC adapter
Battery: Optional Lithium-ion battery

More info

Maestro A / B Battery Packs Specifications*

FlexRadio Systems recommend that you follow the recommended manufacturer’s instructions for charging the battery pack. Not all battery packs can be charged while the load or the USB drain cable is connected. For ensured safety, disconnected the load or the USB drain cable when charging the battery unless explicitly allowed by the battery manufacturer. FlexRadio will not be responsible for any damage to the Maestro due to battery charging related issues.

The batteries below meet the following specs:

Maximum Battery Size: 3″W (7.62 cm) x 6″L (15.24 cm) x 0.75″D (1.91 cm)
Power Connector: USB-A female
Recommended Current Supply: 2.5A at 5V DC output
Auto Start: Preferred feature — initiate start on the introduction of a load

*Not sold by FlexRadio

Radio Anytime, Anywhere

With SmartLink remote, just turn it on and play radio from anywhere.

Plug and Play Remote
Built-in Wi-fi and Ethernet
Truly Wireless Operation
No complex setup required
Operate anywhere, any time
Across the country or across the world

Options

Tilt hinge feet (constant torque)
FlexRadio FHM-3 hand mic
Soft-side carry case
Plastic dust cover
