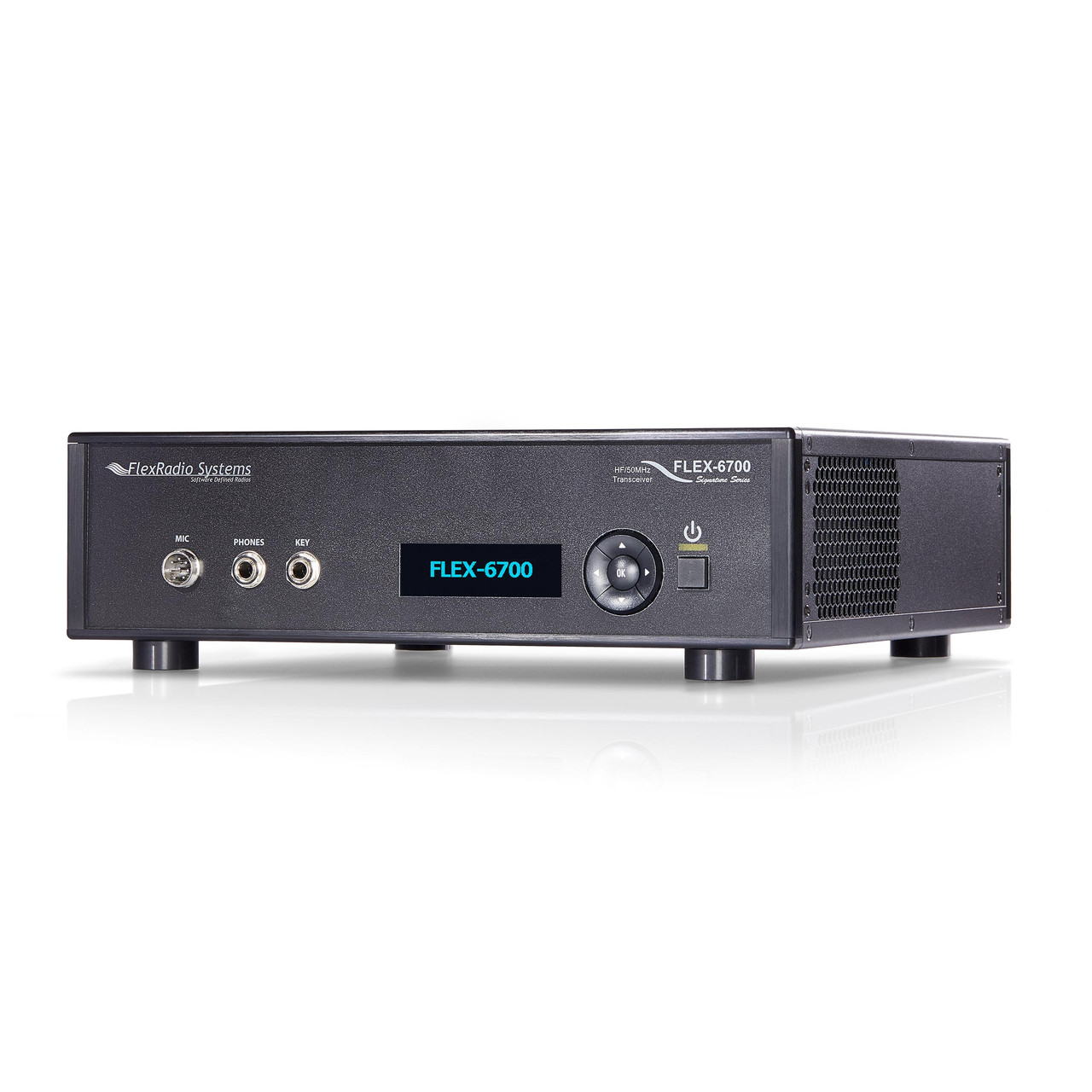

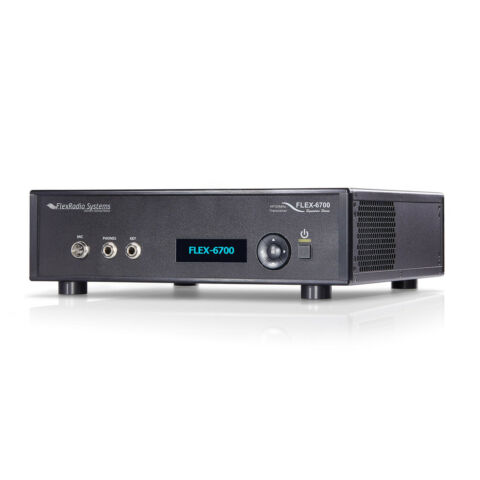

Certified Pre-Loved FLEX-6700 comes with a 1 year warranty and most recent version of software. The unit has been tested and recalibrated to be prepared for resale.

Order Payment Information:

FlexRadio Systems does not charge your credit card until your order ships, but we do pre-authorize the the full purchase price at the time you place your on-line order. If you choose to use PayPal as your payment method, your account will be charged immediately.

Due to the price class of a FLEX-6000, your order may exceed your credit card’s daily transaction limit resulting in your order not being completed. In these cases, you may either contact your credit card company and negotiate a different daily purchase limit -OR- you can call FlexRadio Systems Sales department at 512-535-4713 ext 1 to place your order over the phone where we will not pre-authorize order payment until time of shipment.

The FLEX-6700™ Signature Series transceiver is based on a new hardware architecture and SmartSDR™ software platform. This hardware uses Digital Down Conversion (DDC) to convert from RF to digital and Digital Up Conversion (DUC) to convert from Digital to RF. The FLEX-6700 uses two Spectral Capture Units™ (SCU) for the RF to digital conversion and an ultra high performance on-board signal processing and control system to perform demodulation and modulation, filtering, and audio stream management. The result is incredible receiver dynamic range and received signal clarity.

The FLEX-6700 model transceiver utilizes two SCUs for reception from 0.70 to 77 MHz plus 135 to 165 MHz and the ability to create up to 8 full featured independent SLICE RECEIVERS. Optimized preselector filters can be selected for the ham bands for greater out of band rejection.

SmartSDR is the “ecosystem” of the radio platform. It organizes all the signal processing power in the radios into an advanced radio fabric. SmartSDR understands the capabilities of each SCU and how to harness its power. It also comprises of the “presentation layer” or GUI client that the user interacts with. The FLEX-6700 utilizes an Ethernet connection for high-speed “driverless” access to the graphical user interface (GUI).

The FLEX-6700 provides continuous duty 100W output across the entire 160-6m band. The FLEX-6700 also includes an automatic antenna tuner (ATU) capable of tuning antennas over 10:1 range (3:1 on 160m and 6m).

For more technical information on the FLEX-6000seriesof software defined radios, just download the FLEX-6000 Product Brochure.

Specs

  • Weight: 304 oz

Receiver

  • Receiver Architecture: Direct Digital Sampling
  • Spectral Capture Units: Two (2)
  • Maximum Slice Receivers: Eight (8)
  • Maximum High Resolution Spectrum Displays: Eight (8)
  • Maximum Panadapter Width: 14 MHz
  • ADC Resolution: 16-bits
  • ADC Sampling Rate: 245.76 Msps
  • Wideband Frequency Coverage: 30 kHz – 72 MHz; 135 – 165 MHz
  • DAX IQ Channels / Bandwidth Per Channel: Four (4) @ 24 kHz – 192 kHz
  • DAX Audio Channels: Eight (8)
  • Amateur Band Preselector Coverage: 160m – 6m (except 60m)
  • Preamplifiers / Attenuators: -10 to +40 dB
  • Spurious and Image Rejection Ratio: 100 dB or better
  • External Powered Speaker Output Impedance Level: 600 Ohm Stereo Unbalanced

 Mechanical

  • Height: 4″ (10.2 cm) with feet; 3.5″ (8.9 cm) without feet attached
  • Width: 13″ (33 cm)
  • Depth: 12″ (30.5 cm) or 13″ (33.04 cm) with front handles
  • Weight: Approximately 13 lbs. / 5.9 kgs
  • Operating Temperature: 0 to +50 degrees C; +32 to +122 degrees F

 Transmitter

  • Transmitter Architecture: Direct Digital Up-conversion
  • TX DAC Resolution: 16-bits
  • TX DAC Sampling Rate: 491.52 Msps
  • RF Output Power: 1-100W nominal SSB, CW, FM, RTTY, Digital; 1-25W nominal AM
  • Amateur Band Coverage at Rated Power Output: 160m – 6m
  • Low Pass PA Filter Bands: 1.8 MHz – 30 MHz continuous, 50 MHz – 54 MHz
  • Transverter IF Output Power: +0 dBm Typical; +15dBm max (+7 dBm, 2m)
  • Transverter IF Frequency Coverage: 100 kHz – 72 MHz; 135 MHz – 165 MHz
  • Modulation System: Digital Low Power at Carrier Frequency
  • Maximum FM Deviation: ±5 kHz
  • DAX Transmit Channel: Yes
  • Carrier / Unwanted Sideband Suppression: <-80 dBc typ / <-80 dBc typ
  • Spurious Emissions 1.8 – 50 MHz Amateur Bands: <-55 dBc; -65 dBc 6m
  • Transmit Bandwidth: Default 100-2900 Hz (Variable 50-10000 Hz)
  • Microphone Connectors: Unbalanced 8-pin Foster, Balanced XLR/TRS
  • Microphone Impedance: 600 Ohms Nominal (200-10kΩ)

 Antenna

  • Matching Range 80m – 10m: 8.3 Ohms – 300 Ohms
  • Matching Range 160 and 6m: 16.7 Ohms – 150 Ohms

 Electrical

  • Power Supply Requirements: +13.8V DC nominal ±15%
  • Current Drain (Receive/Transmit Max): 3A / 23A @ 13.8V

 General

  • 2U, 19inch (48.26 cm) Rack Mounting Kit
  • Front Handle Kit (adds 1 inch/2.5 cm to total depth
  • USB 2.0 Ports (peripheral control): Two (2)
  • Master Clock Frequency: 983.04 MHz
  • Master Clock Phase Noise: -147 dBc@ 10 kHz; -152 dBc@ 100 kHz
  • 10 MHz Reference Clock Stability: 0.02ppm OCXO
  • Emission Modes: USB, LSB, CW, RTTY2, AM, Synchronous AM, FM, NFM, DFM
  • Frequency Resolution: 1 Hz min.
  • Antenna Connectors: SO-239×2, BNCx2, XVTRx1
  • Antenna Impedance (w/o tuner): 50 Ohm Unbalanced

 Options

  • GPSDO with Rear Panel 10 MHz Reference Output
  • GPSDO Frequency Stability (GPS locked):1 5 x 10 (-12) over 24 hours

The Ultimate On-Air Experience

  • Dual Spectral Capture Units
  • Unprecedented Spectrum Visibility
  • Up to Eight Panadapters and Waterfalls
  • Dual-Stage RF Preamplifters
  • 2 Meter Receive Capability

Total Flexibility

With SmartLink remote*, just turn it on and play radio from anywhere.

  • Dirt Simple Remote
  • Plug and Play
  • Built in Wi-fi and Ethernet
  • Truly Wireless Operation**

Backed by an Amazing Suite of Software

*SmartLink Remote Requires SmartSDR V2.x License. Requires internet connection. **Requires customer supplied battery.
Specifications subject to change without notice. 1Requires optional GPSDO module 2Requires 3rd party software.
