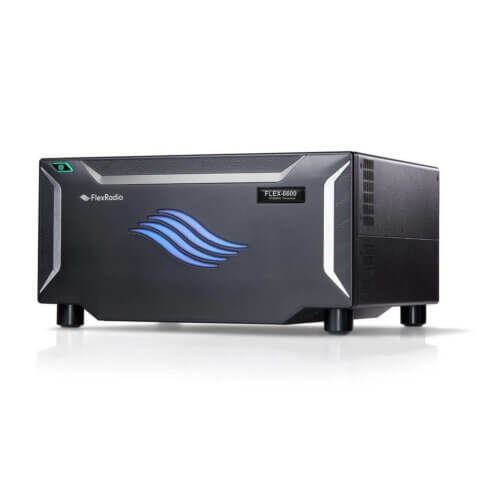

Certified Pre-Loved FLEX-6600 Signature Series SDR Transceiver (Out of Stock)

FlexRadio Systems

SKU: OBI-FLEX-6600

0 reviews

MSRP: $4,069.00 $4,069.00 $3,899.00

MSRP:

FLEX-6400/6600 Extended Transmit Module + $399

FLEX-6400/6600 Handle Kit + $89.99

You must be logged in to create a wish list
Log in
Register

Out of stock!

0% APR financing available for 6 months *

As low as $172.06 / month ** Select Bread Financing at checkout. Details Purchasing programs International resellers

Certified Pre-Loved FLEX-6600 radios are sold in excellent condition with a one year warranty. They have been through a full factory test and recalibration.

The FLEX-6600 offers the ultimate performance direct sampling SDR technology and the best value for the serious HF/6m operator. The FLEX-6600 model is designed for the Ham who wants to operate the radio exclusively as a server from PC, laptop, Maestro, Mac, or iOS clients — whether local or remote. Both models share the same game changing band awareness, industry leading phase noise performance/ receiver dynamic range, and brick wall filters to give you the advantage in the most competitive DXing or contesting activities while maximizing your fun in casual operations. With a PC, laptop, or Mac client, you can utilize up to four 14 MHz spectrum/waterfall displays and independent band/mode receivers to revolutionize your view of the bands, especially on digital modes.

Contest grade filters, ultra low spurious emissions, and the ability to operate full duplex cross band on two antennas let you transmit on one band while receiving on another — no external equipment required. Even switch to synchronous diversity reception when needed to help you pick out the weak ones in the midst of QRM. By adding FlexRadio’s new PowerGenius XL™ LDMOS solid state amplifier a complete legal limit, all mode SO2R station is now practical with one radio, one amp and only three interconnect cables — half the cost and none of the complexity.

FlexRadio’s industry leading SmartSDR™ software offers

compatibility across the entire FLEX-6000 Signature Series family to deliver continuous leveraged software enhancement. And you can use the latest SmartLink™ technology to access your radio virtually anywhere from any SmartSDR compatible client with only a login and password — even your iPhone.

Features

100W PEP HF-6M Operation
All Modes/All Bands
Integrated Remote Operation With Maestro, PC/ Laptop, iPad^® Or iPhone^®
4 Independent Band / Mode Receivers
Full Duplex Cross-Band Operation
True Diversity Reception
Two Receive-Only Ports
Two Transverter Ports
Economical SO2R Solution – (OTSPR) Support In One Radio
Contest Band Filters: >50 dB Rejection
Direct Sampling SDR 245.76 Msps – 16 Bit
115 dB 2kHz RMDR
>155 dB Dynamic Range
10 MHz Reference Input With GPSDO Option
Optional MARS/CAP/Shares Expansion
Built In Antenna Tuner

Full Specifications

Specs

Weight: 272 oz
Width: 18 in
Depth: 19 in
Height: 12 in

Receiver

4 Independent Band/Mode Receivers (Max)
1/2 kHz Reciprocal Mixing Dynamic Range (RMDR): 110/115 dB
ADC Bits/Sampling Rate: 16/245.76 Msps
Frequency Coverage: 30 kHz-54 MHz
Amateur Band Preselectors: 7th Order Contest Bands, 3rd Order Other
Cable-less Digital Audio (DAX/DAX IQ) Channels: 4/4
Receive Only Ports (Base/Including XVTR Ports): 2/4
Full Duplex RX/TX Operation
Simultaneous Receive on Two Antennas (e.g. 20m & 6m)
Single Radio SO2R Operation – No External Equipment
Diversity Reception

Spectrum/Waterfall

Internal Touch Panel Display Size Diagonal: 8-inch (6600M)
Integrated Display Resolution: 1920×1200 (6600M)
External Display Resolution/Connection: 1920×1200/HDMI (6600M)
Spectrum/Waterfall Displays (Max): 4
Spectrum/Waterfall BW (Min/Max): 1.2 kHz to 14MHz
Spectrum Dynamic Range (Max Zoom In): >155 dB
Spectrum Resolution Bandwidth (Min): 1.6 Hz/px

Transmitter

160m-6m Transmitter Output: 1-100W(25W AM)
Harmonic Suppression (Typ): < -60 dBc
Transverter Ports: 2
Transverter Frequency Coverage/Power: 100 kHz – 54 MHz/0 to +10 dBm
Integrated Automatic Antenna Tuner Range: 3:1 SWR
Continuous MARS/CAP Coverage Optional

General

Modes (Note 1) SSB, CW, AM, SAM, FM, FREE-DV, RTTY, DIGITAL
Integrated Remote Operation
Maestro, PC, MAC, iPhone, & iPad Client Options
Internal Speaker/Power: 2W Class D (6600M)
Frequency Stability: (0C – 50C) 0.5ppm (TCXO)
GPS Disciplined Oscillator: Optional 5 x 10^-12 Over 24 Hours
External 10MHz Reference Input
Power Supply Requirements: 13.8 VCDC +/- 15% (14 VDC Nom)
Dimensions: 6.74″H (17.1 cm) x 14″W (35.6 cm) x 13.25″D (33.7 cm)

More info

Simply Beautiful

No PC required to operate the FLEX-6600M*
8 inch 1920 x 1200 IPS Display
Up to four independent receivers
Up to four 14MHz spectrum displays
Ergonomic workflow
Wide spaced/single function controls

Anywhere, Anytime, From Any Of These Devices:

With SmartLink and a FLEX-6600/FLEX-6600M you can operate your radio from almost anywhere! Just take an iPhone, iPad, Laptop or Maestro with you and instantly connect to your radio with virtually no setup required.

Plug & Play Remote**

No complex setup required
Operate anywhere, any time
Use a Maestro, iPad, iPhone or Laptop
Across the country or across the world
Complete control

Best in Class Performance

115db RMDR
No noise fatigue
Ultra Low Phase Noise
Full Break-in QSK CW
Diversity Reception
SO2R in a box
Brick Wall Filters
Stunning transmit audio

Backed by an Amazing Suite of Software

*A PC may be required for use of 3rd party software such as loggers and digital modes programs **SmartLink Remote Requires SmartSDR V2.x License. Requires internet connection. 1. RTTY and other digital modes use 3rd party software over DAX channels.
