Aurora AU-510M

FlexRadio Systems
SKU: AURORA-510M
0 reviews

$7,349.00

MSRP:

Place a reservation now!

0% APR financing available for 6 months *

As low as $339.08 / month ** Select Bread Financing at checkout. Details Purchasing programs International resellers

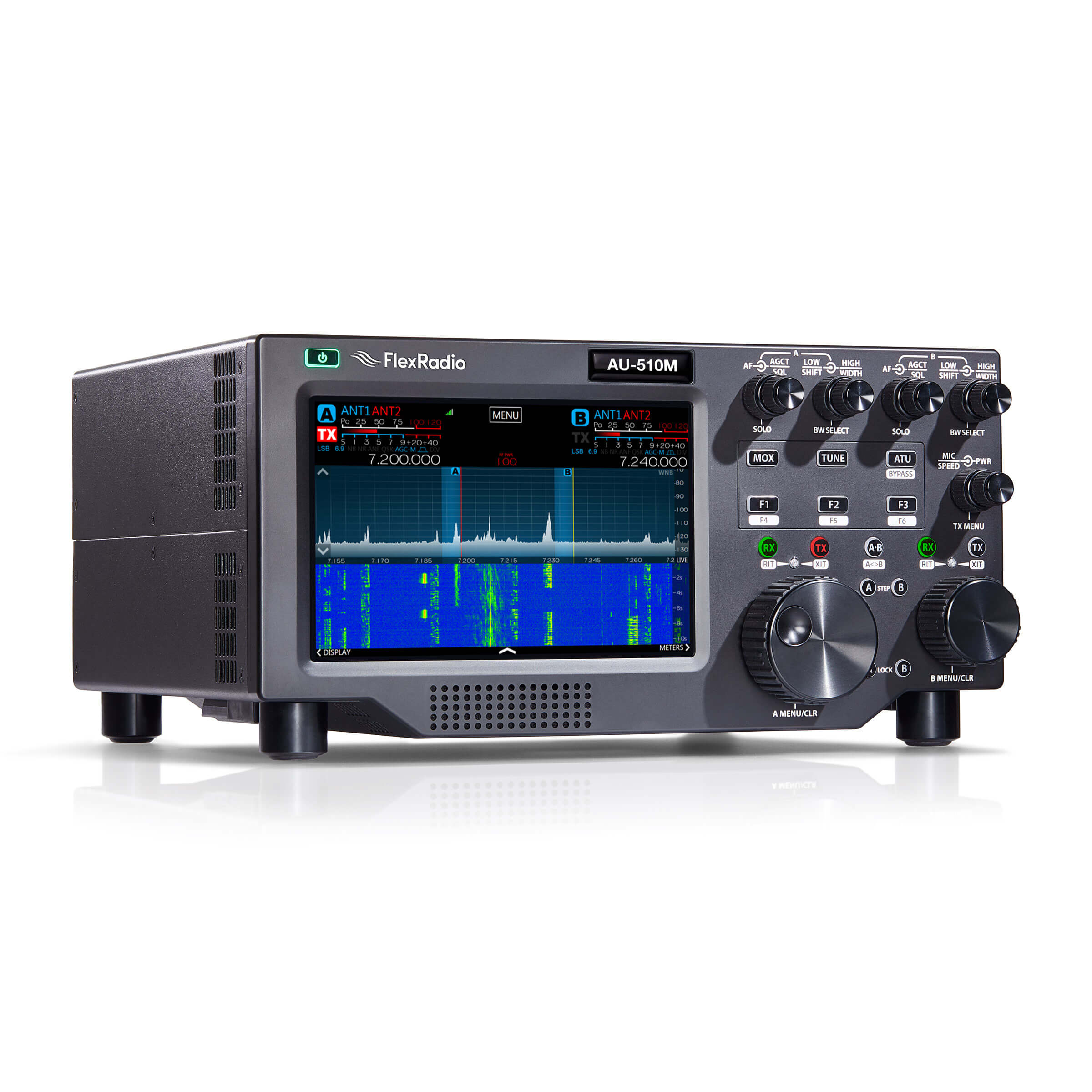

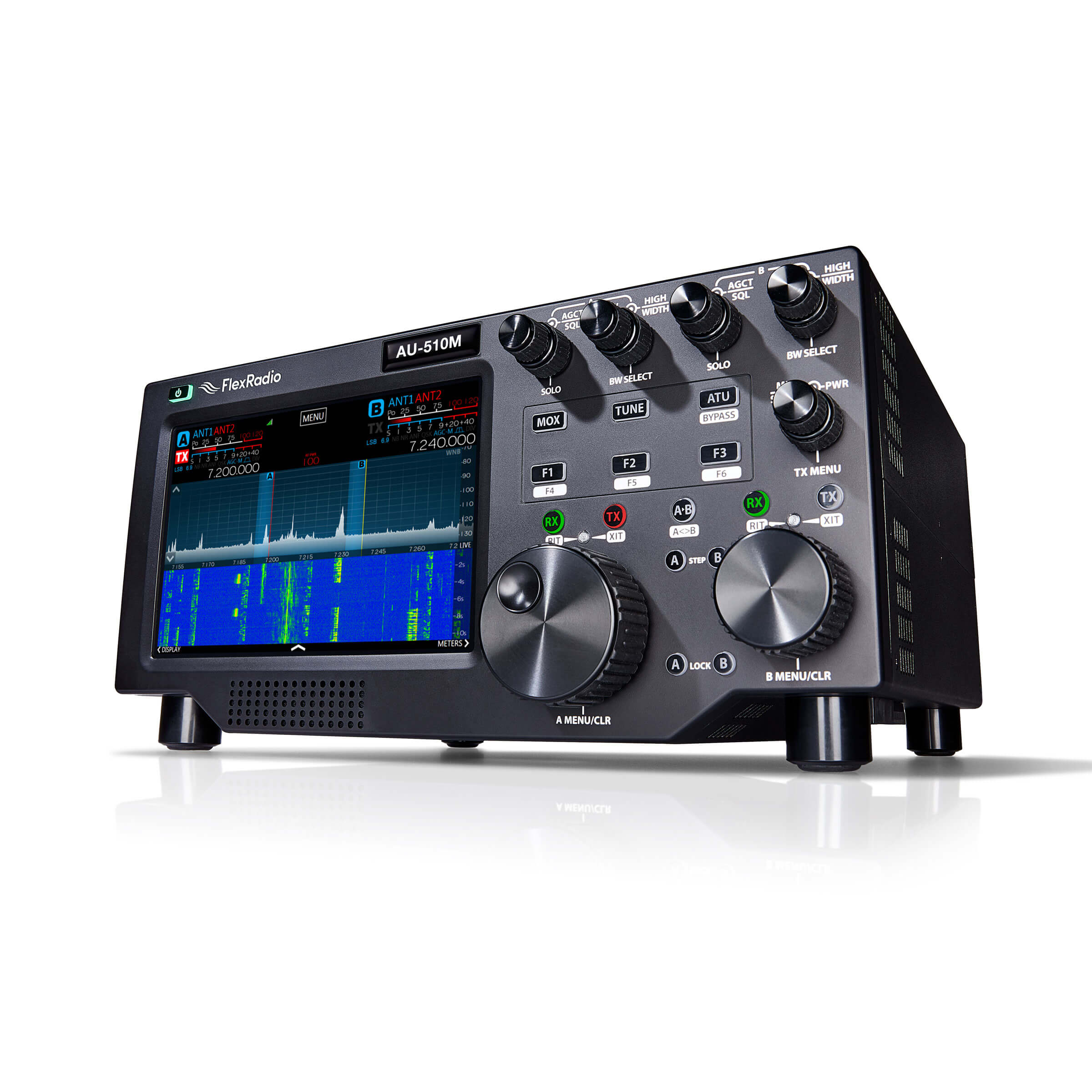

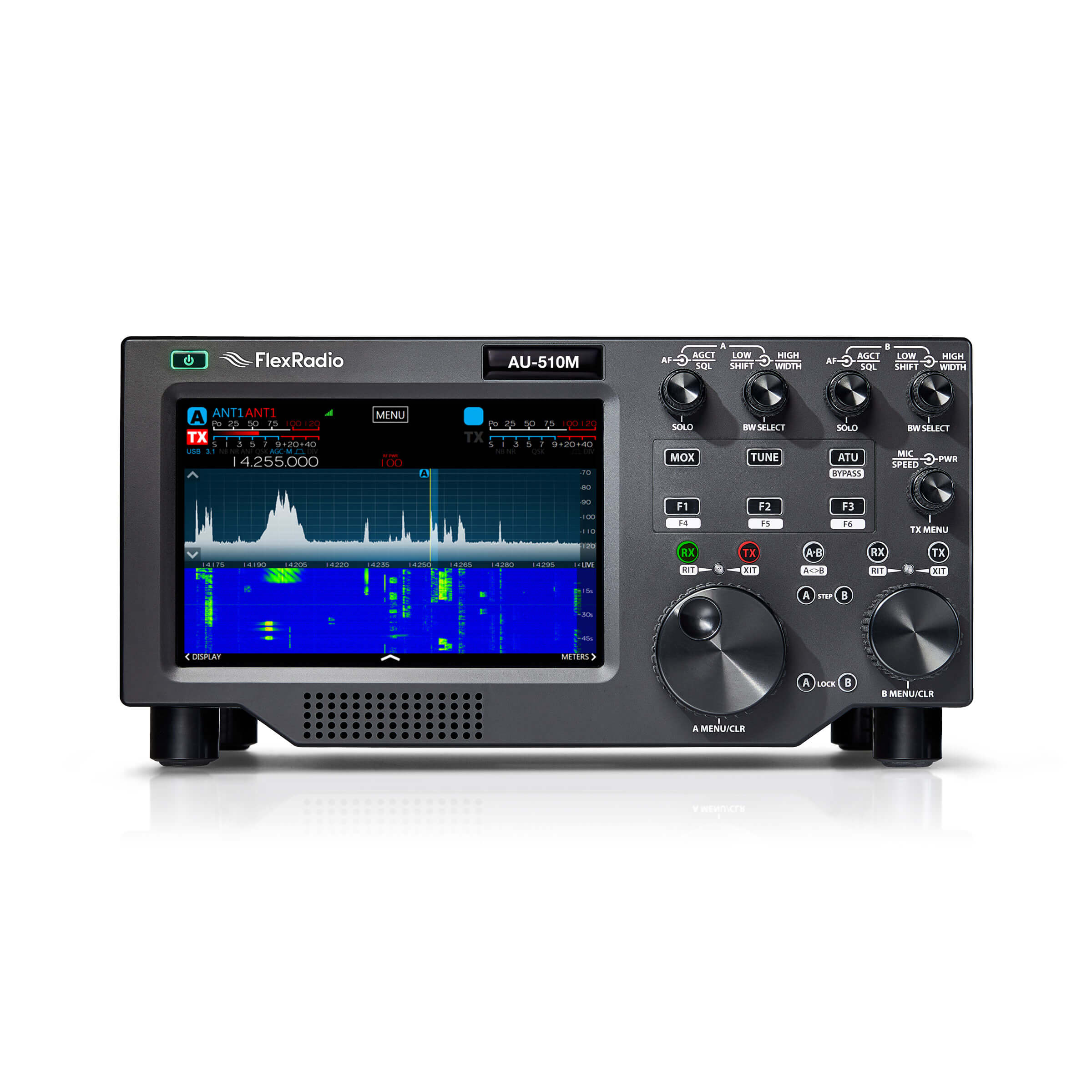

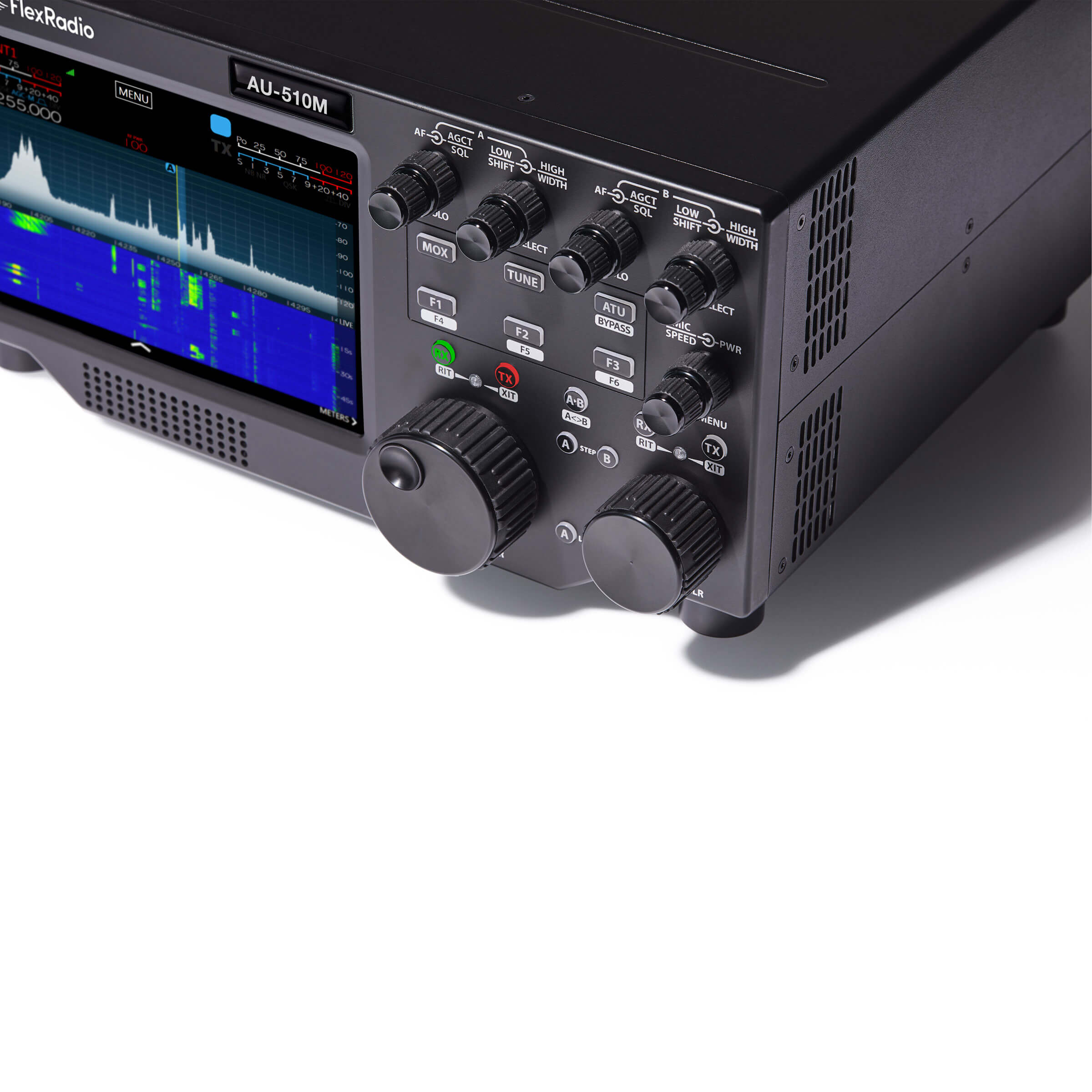

AU-510M 500W Integrated SDR Transceiver with Maestro Front Panel

The AU-510M redefines HF/6m operation—combining a full-featured SDR transceiver, 500W amplifier, power supply, and tuner into one compact, high-performance chassis. It’s the world’s first truly integrated 500W software-defined radio, engineered for today’s most demanding amateur radio operators.

At the core is a groundbreaking 500W transmitter module operating at up to 80% efficiency, delivering more power with less heat, lower input demands, and a dramatically lighter footprint—all within the size of a typical 100W PA system.

The AU-510M includes a built-in Maestro front panel, just like the FLEX-8600M, offering full touchscreen control, responsive knobs, and an all-in-one user experience—no PC required. Whether you’re in the shack, on the road, or operating remotely, the AU-510M puts advanced SDR performance at your fingertips.

The AU-510M is a single SCU (Spectral Capture Unit) radio—ideal for most operating needs. An SCU is the part of the radio that digitizes the RF spectrum, enabling slice receivers, panadapters, and digital signal processing. A single SCU supports up to 2 slice receivers and 2 simultaneous panadapters, simultaneously covering from 30 kHz to 54 MHz, offering plenty of flexibility for everyday operating, DXing, or contesting.

Place a reservation now
View Au-510M without integrated display

Inside every AU-510M:

  • 500W high-efficiency transmitter
  • Integrated power supply (80–264VAC input)
  • Automatic antenna tuner
  • SmartSignal™ adaptive predistortion for enhanced spectral purity and reduced IMD
  • Controlled Envelope SSB (CESSB): Up to 3 dB more talk power with reduced peak-to-average ratio—boosting signal presence without distortion
  • MultiFlex™: Dual-operator capability with independent SmartSDR sessions—perfect for contesting, remote ops, or shared stations

With everything built in—transmitter, tuner, amplifier, power supply, and front panel—the AU-510M eliminates bulky gear and external cabling, delivering true plug-and-play power and performance.

Ideal for remote HF projects, the AU-510M’s compact design, low heat output, and single-plug AC input make it easy to deploy in off-grid or hard-to-access locations—bringing serious power to your remote station with unmatched ease.

Specs

  • Weight: 29 oz

General

  • Modes: SSB, CW, AM, SAM, FM, RTTY, Digital, and Waveforms
  • Coverage: All amateur bands 160m–6m (receive: 30 kHz–54 MHz)
  • Frequency Stability: 0.001 ppm with GNSS, 0.5 ppm with internal TCXO
  • Remote Operation: Built-in SmartLink™ for operation via Maestro™, iPad®, iPhone®, or PC/Mac
  • Integrated GNSS Receiver: 12-channel support for GPS, Galileo, GLONASS, QZSS, SBAS
  • Cold Start TTFF: <35s
  • Optional GPSDO: 10 MHz output, 5×10⁻¹³ stability over 24 hours
  • Power Requirements: 80–264VAC, 35W receive, 675W transmit
  • Dimensions: 6.74”H × 14”W × 13.25”D (17.1 × 35.6 × 33.7 cm)

Receiver

  • SCUs: 1 (Single Spectral Capture Unit)
  • Independent Band/Mode Receivers: 2
  • Slice Receivers: 2
  • Panadapters: 2 (simultaneously covering 30 kHz–54 MHz)
  • RMDR (2 kHz): 110/115 dB
  • Dynamic Range (Max Zoom): >145 dB
  • ADC: 16-bit, 122.88 Msps direct sampling
  • Spectrum Bandwidth: 5 kHz to 7 MHz
  • Min Resolution Bandwidth: 5.85 Hz/pixel
  • Preselectors: 3rd order
  • DAX / DAX IQ Channels: 2 / 2
  • Receive-Only Ports: 1 base / 2 including XVTR

Aurora Transmitter

  • Output Power (160m–10m): 1–500W PEP, 125W AM
  • Output Power (6m): 1–200W PEP, 50W AM
  • Efficiency: Nominal 80% (up to 90% peak efficiency)
  • Harmonic Suppression: >60 dBc
  • Transverter Support: 1 port, 100 kHz–54 MHz, adjustable up to +10 dBm
  • Built-In Tuner Range: Matches up to 3:1 SWR
  • Adaptive Pre-distortion: Included (SmartSignal™)
  • Modes Supported: All standard amateur modes, including digital

Spectrum/Waterfall Display

  • Integrated 8” 1920 × 1200 IPS Touchscreen
  • External Display Support
  • Built-in Maestro Interface: Instant control with knobs, buttons, and touchscreen

Check out the FAQs →
Compare models →

FlexRadio does not charge your credit card until your order ships, but we do pre-authorize the full purchase price at the time you place your on-line order.

Due to the price class of a FLEX AU-510M, your order may exceed your credit card’s daily transaction limit resulting in your order not being completed. In these cases, you may either contact your credit card company and negotiate a different daily purchase limit -OR- you can call the FlexRadio Sales department at 512-535-4713 ext 1 to place your order over the phone where we will not pre-authorize order payment until time of shipment.

Resources for Aurora AU-510M

Documentation
