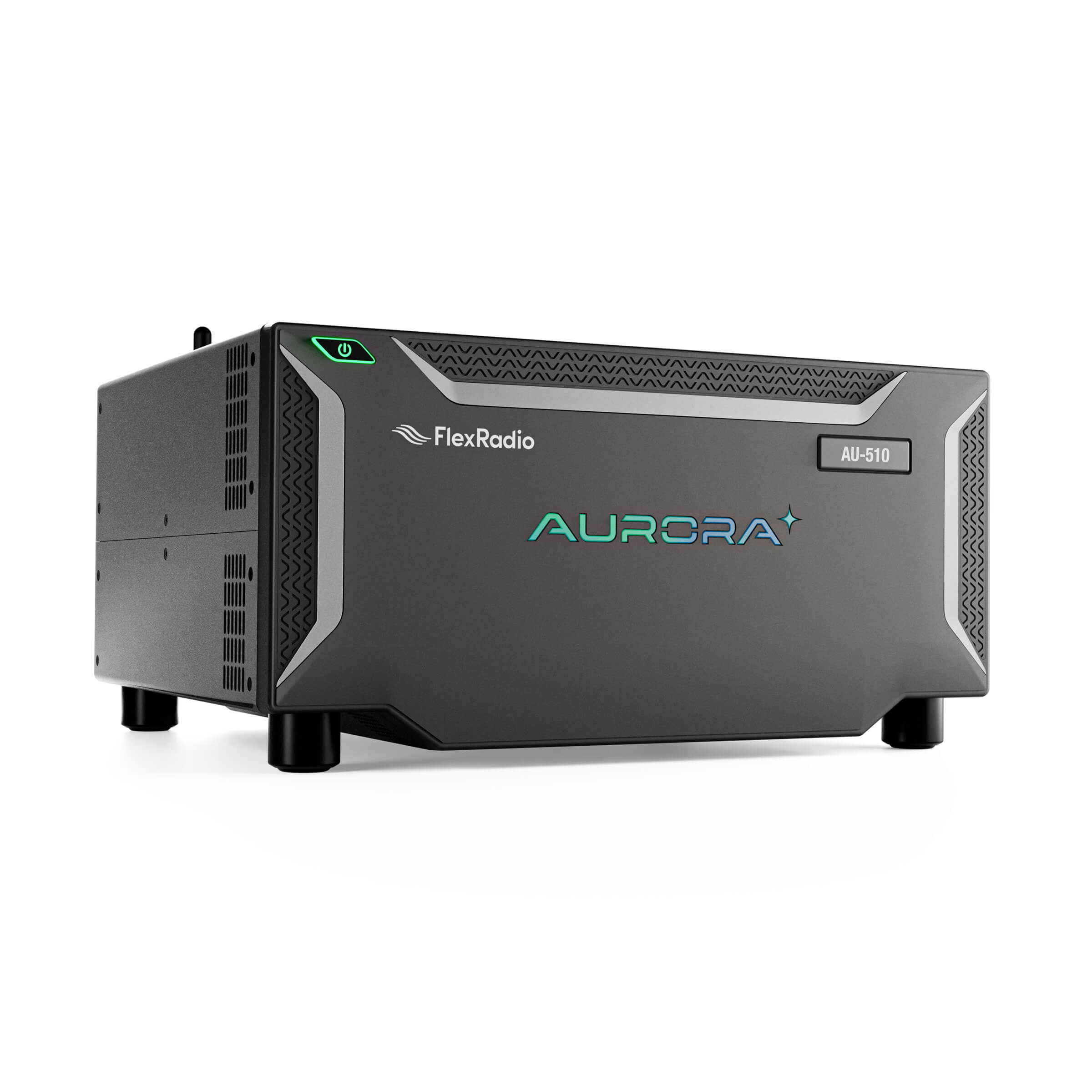

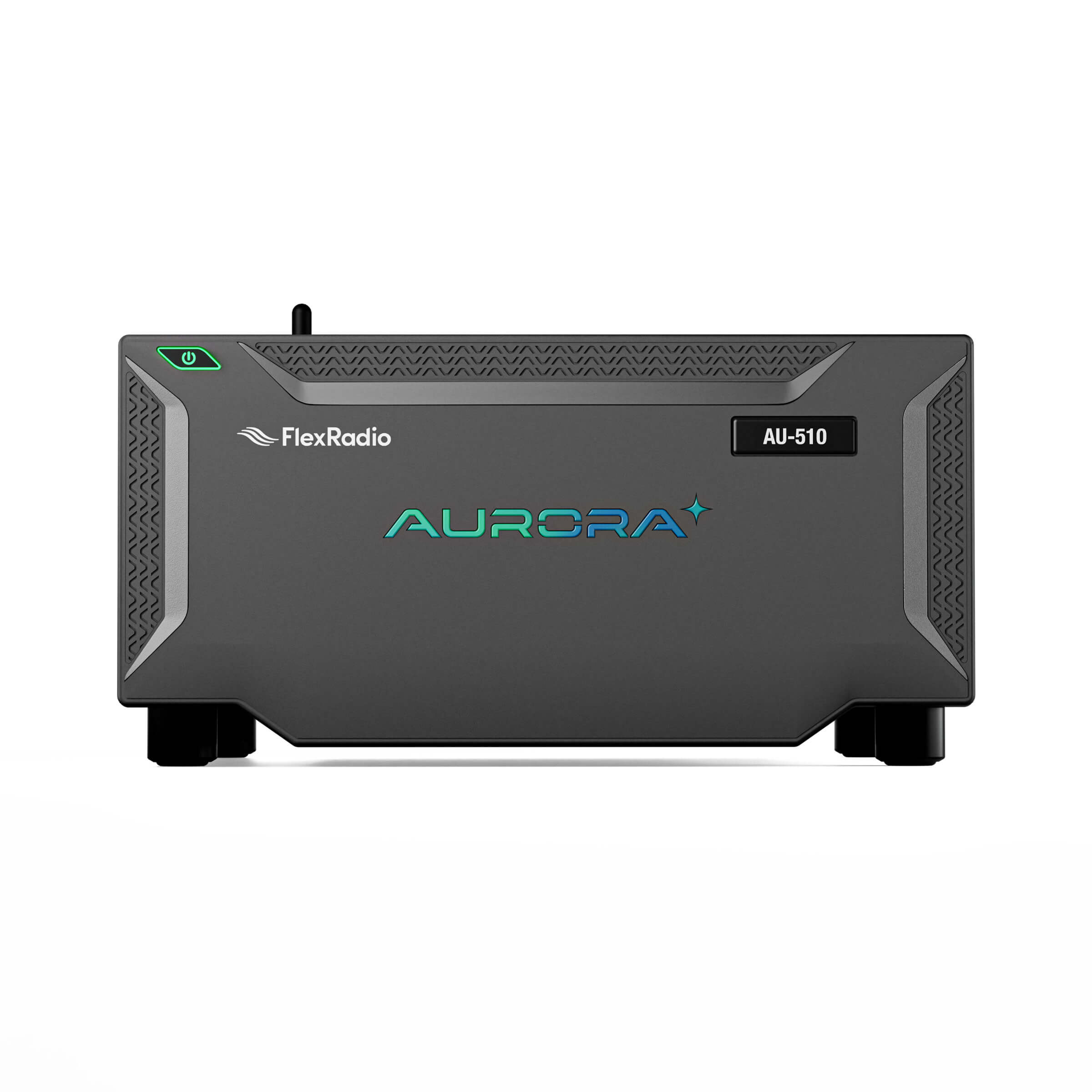

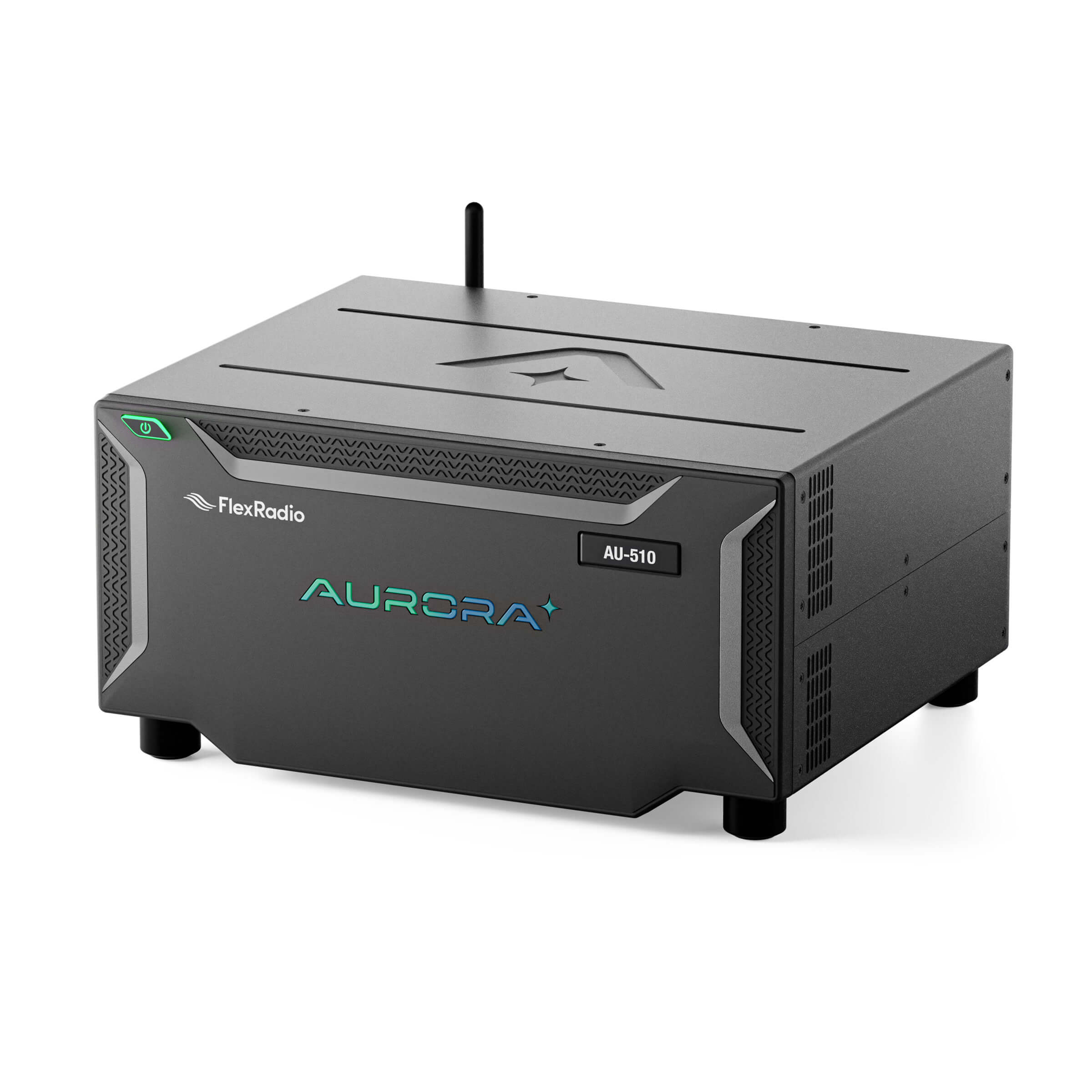

Aurora AU-510

FlexRadio Systems
SKU: AURORA-510
0 reviews

$6,199.00

MSRP:

Place a reservation now!

0% APR financing available for 6 months *

As low as $286.02 / month ** Select Bread Financing at checkout. Details Purchasing programs International resellers

AU-510 500W Integrated SDR Transceiver

The AU-510 sets a new standard for integrated SDR performance, delivering a full-featured transceiver, 500W amplifier, automatic tuner, and power supply—all in one compact, high-efficiency chassis.

At its core is a revolutionary 500W transmitter module operating at up to 80% efficiency, dramatically reducing heat, power consumption, and size—making it ideal for both local and remote installations.

Designed for use with SmartSDR clients on Windows, macOS, iPad®, iPhone®, or Maestro™, the AU-510 provides flexible control with no need for a built-in front panel or display. Its headless design makes it perfect for rack-mounted stations, remote HF sites, or minimalist setups that prioritize performance and simplicity.

The AU-510 is a single SCU (Spectral Capture Unit) radio. An SCU digitizes the RF spectrum for signal processing and display, supporting up to 2 slice receivers and 2 simultaneous panadapters, covering 30 kHz to 54 MHz in real time for complete visibility and control across the bands.

Place a reservation now
View Au-510 with integrated display

Inside the AU-510:

  • 500W high-efficiency transmitter
  • Integrated AC/DC power supply (80–264VAC input)
  • Automatic antenna tuner
  • SmartSignal™ adaptive predistortion for cleaner signals and reduced IMD
  • Controlled Envelope SSB (CESSB): Up to 3 dB more talk power with no added distortion
  • MultiFlex™: Enables simultaneous operation by two independent SmartSDR clients

With its fully integrated architecture, the AU-510 eliminates the need for separate amplifiers, tuners, and bulky power systems—delivering serious power and capability in a streamlined, ready-to-deploy form factor.

Specs

  • Weight: 25 oz

General

  • Modes: SSB, CW, AM, SAM, FM, RTTY, Digital, and Waveforms
  • Frequency Coverage: Receive 30 kHz–54 MHz; Transmit on all amateur bands 160m–6m
  • Frequency Stability: 0.001 ppm with GNSS, 0.5 ppm with internal TCXO
  • Remote Operation: Built-in SmartLink™ for use with PC, Mac, iPad®, iPhone®, or Maestro™
  • GNSS Receiver: Integrated 12-channel GPS, Galileo, GLONASS, QZSS, SBAS
  • Cold Start TTFF: <35s
  • Optional GPSDO: 10 MHz output, stability 5×10⁻¹³ over 24 hours
  • Power Requirements: 80–264VAC, 35W receive, 675W transmit
  • Dimensions: 6.74”H × 14”W × 13.25”D (17.1 × 35.6 × 33.7 cm)

Receiver

  • Spectral Capture Units (SCUs): 1
  • Independent Band/Mode Receivers: 2
  • Slice Receivers: 2
  • Panadapters: 2 (simultaneously covering 30 kHz–54 MHz)
  • 2 kHz RMDR: 110/115 dB
  • Max Spectrum Dynamic Range: >145 dB
  • ADC: 16-bit @ 122.88 Msps direct sampling
  • Spectrum Bandwidth: 5 kHz to 7 MHz
  • Minimum Spectrum Resolution: 5.85 Hz/pixel
  • Preselectors: 3rd order for amateur bands
  • DAX / DAX IQ Channels: 2 / 2
  • Receive-Only Ports: 1 base / 2 with XVTR

Aurora Transmitter

  • Output Power (160m–10m): 1–500W PEP, 125W AM
  • Output Power (6m): 1–200W PEP, 50W AM
  • Efficiency: Nominal 80%, peak up to 90%
  • Harmonic Suppression: >60 dBc
  • Transverter Port: 1, 100 kHz–54 MHz, adjustable up to +10 dBm
  • Tuner Matching Range: Up to 3:1 SWR
  • Adaptive Pre-distortion: Included (SmartSignal™)
  • Supported Modes: SSB, CW, AM, FM, Digital, and more

Check out the FAQs →
Compare models →

FlexRadio does not charge your credit card until your order ships, but we do pre-authorize the full purchase price at the time you place your on-line order.

Due to the price class of a FLEX AU-510, your order may exceed your credit card’s daily transaction limit resulting in your order not being completed. In these cases, you may either contact your credit card company and negotiate a different daily purchase limit -OR- you can call the FlexRadio Sales department at 512-535-4713 ext 1 to place your order over the phone where we will not pre-authorize order payment until time of shipment.

Resources for Aurora AU-510

Documentation
