6600

Radio Server SDR Features
  • 100W PEP HF-6M Operation
  • All Modes/All Bands
  • Integrated Remote Operation With Maestro, PC/ Laptop, iPad® Or iPhone®
  • 4 Independent Band / Mode Receivers
  • Full Duplex Cross-Band Operation
  • True Diversity Reception
  • Two Receive-Only Ports
  • Two Transverter Ports
  • Economical SO2R Solution – (OTSPR) Support In One Radio
  • Contest Band Filters: >50 dB Rejection
  • Direct Sampling SDR 245.76 Msps – 16 Bit
  • 115 dB 2kHz RMDR
  • 10 MHz Reference Input With GPSDO Option
  • Optional MARS/CAP/Shares Expansion
  • Built In Antenna Tuner

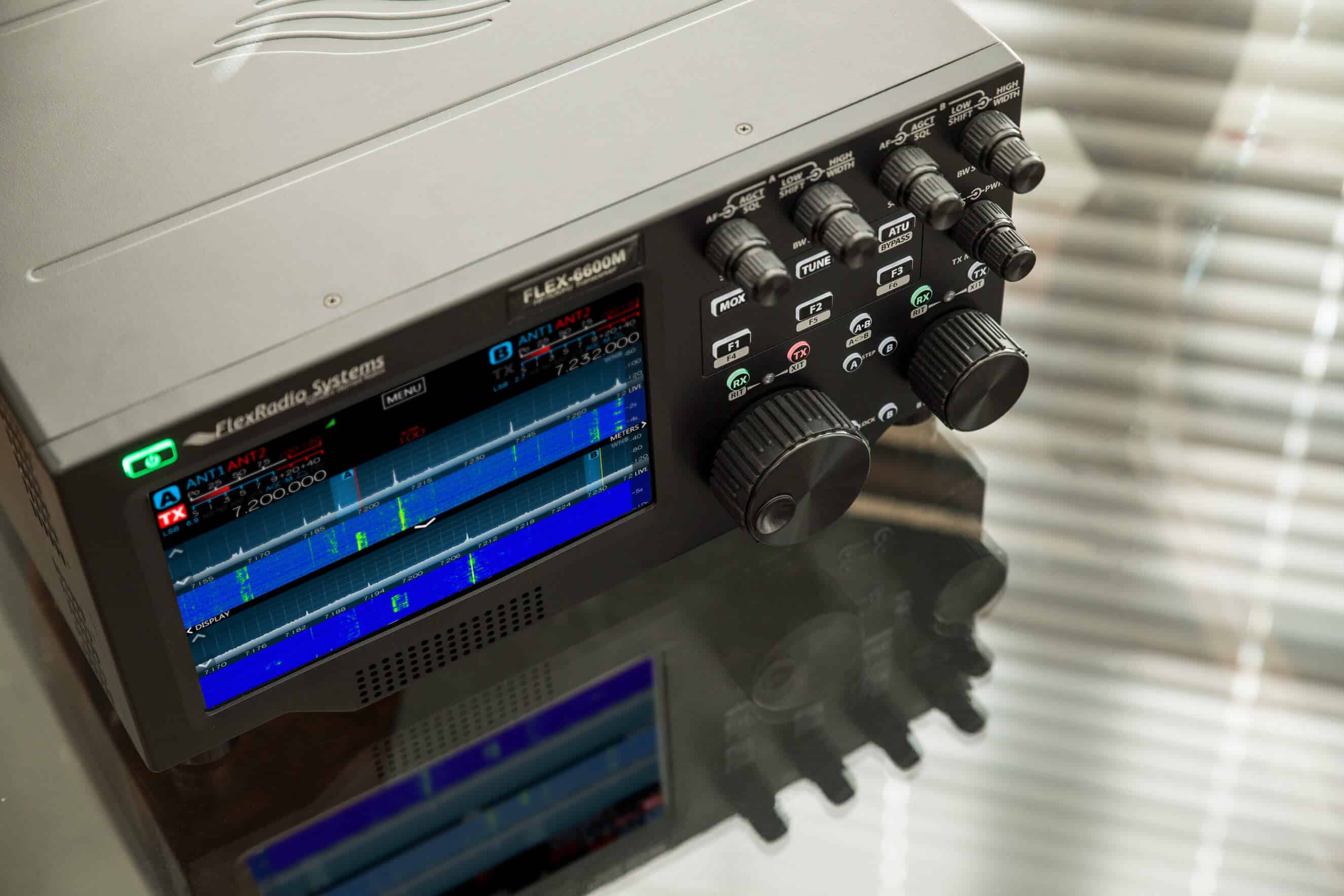

6600M

All-in-One SDR includes all the features
of the FLEX-6600 plus
  • Spectacular 8-Inch, 1920 X 1200 IPS Integrated Display
  • Touch Tune, Zoom, Pan, Controls At Your Fingertips
  • Ergonomically Optimized Controls With Full Dual VFO
  • Up To 14MHz Spectrum / Waterfall Bandwidth
  • Real-Time Spectrum / Waterfall
  • >155 dB Dynamic Range
  • External Display Output – Full 1920 X 1200 Resolution
  • Internal Speaker

Simply Beautiful

  • No PC required to operate the FLEX-6600M*
  • 8 inch 1920 x 1200 IPS Display
  • Up to four independent receivers
  • Up to four 14MHz spectrum displays
  • Ergonomic workflow
  • Wide spaced/single function controls

Anywhere, Anytime, From Any Of These Devices:

With SmartLink and a FLEX-6600/FLEX-6600M you can operate your radio from almost anywhere! Just take an iPhone, iPad, Laptop or Maestro with you and instantly connect to your radio with virtually no setup required.

Plug & Play Remote**

  • No complex setup required
  • Operate anywhere, any time
  • Use a Maestro, iPad, iPhone or Laptop
  • Across the country or across the world
  • Complete control

Best in Class Performance

  • 115db RMDR
  • No noise fatigue
  • Ultra Low Phase Noise
  • Full Break-in QSK CW
  • Diversity Reception
  • SO2R in a box
  • Brick Wall Filters
  • Stunning transmit audio

Full Specifications

 Receiver
  • 4 Independent Band/Mode Receivers (Max)
  • 1/2 kHz Reciprocal Mixing Dynamic Range (RMDR): 110/115 dB
  • ADC Bits/Sampling Rate: 16/245.76 Msps
  • Frequency Coverage: 30 kHz-54 MHz
  • Amateur Band Preselectors: 7th Order Contest Bands, 3rd Order Other
  • Cable-less Digital Audio (DAX/DAX IQ) Channels: 4/4
  • Receive Only Ports (Base/Including XVTR Ports): 2/4
  • Full Duplex RX/TX Operation
  • Simultaneous Receive on Two Antennas (e.g. 20m & 6m)
  • Single Radio SO2R Operation – No External Equipment
  • Diversity Reception
 Spectrum/Waterfall
  • Internal Touch Panel Display Size Diagonal: 8-inch (6600M)
  • Integrated Display Resolution: 1920×1200 (6600M)
  • External Display Resolution/Connection: 1920×1200/HDMI (6600M)
  • Spectrum/Waterfall Displays (Max): 4
  • Spectrum/Waterfall BW (Min/Max): 1.2 kHz to 14MHz
  • Spectrum Dynamic Range (Max Zoom In): >155 dB
  • Spectrum Resolution Bandwidth (Min): 1.6 Hz/px
 Transmitter
  • 160m-6m Transmitter Output: 1-100W(25W AM)
  • Harmonic Suppression (Typ): < -60 dBc
  • Transverter Ports: 2
  • Transverter Frequency Coverage/Power: 100 kHz – 54 MHz/0 to +10 dBm
  • Integrated Automatic Antenna Tuner Range: 3:1 SWR
  • Continuous MARS/CAP Coverage Optional
 General
  • Modes (Note 1) SSB, CW, AM, SAM, FM, FREE-DV, RTTY, DIGITAL
  • D-STAR Mode: Optional ThumbDV
  • Integrated Remote Operation
  • Maestro, PC, MAC, iPhone, & iPad Client Options
  • Internal Speaker/Power: 2W Class D (6600M)
  • Frequency Stability: (0C – 50C) 0.5ppm (TCXO)
  • GPS Disciplined Oscillator: Optional 5 x 10-12 Over 24 Hours
  • External 10MHz Reference Input
  • Power Supply Requirements: 13.8 VCDC +/- 15% (14 VDC Nom)
  • Dimensions: 6.74″H (17.1 cm) x 14″W (35.6 cm) x 13.25″D (33.7 cm)

Visit our Learning Center

Need help with our products, software or services? Start by visiting our learning center. Once there, you can download data sheets, quick start guides, installation manuals and watch video tutorials.

Backed by an Amazing Suite of Software

*A PC may be required for use of 3rd party software such as loggers and digital modes programs **SmartLink Remote Requires SmartSDR V2.x License. Requires internet connection. 1. RTTY and other digital modes use 3rd party software over DAX channels.
