Compare 6600 Models

Signature Series HF/50 MHz Direct Sampling SDR Transceiver

Need help building your station?

Contact us

FLEX-6600

FLEX-6600 Server SDR Features

  • 100W PEP HF-6M Operation
  • All Modes/All Bands
  • Integrated Remote Operation With Maestro, PC/ Laptop, iPad® Or iPhone®
  • 4 Independent Band / Mode Receivers
  • Full Duplex Cross-Band Operation
  • True Diversity Reception
  • Two Receive-Only Ports
  • Two Transverter Ports
  • Economical SO2R Solution – (OTSPR) Support In One Radio
  • Contest Band Filters: >50 dB Rejection
  • Direct Sampling SDR 245.76 Msps – 16 Bit
  • 115 dB 2kHz RMDR
  • >155 dB Dynamic Range
  • 10 MHz Reference Input With GPSDO Option
  • Optional MARS/CAP/Shares Expansion
  • Built-In Antenna Tuner

FLEX-6600M

All-in-One SDR includes all the features of the FLEX-6600 plus

  • Spectacular 8-Inch, 1920 X 1200 IPS Integrated Display
  • Touch Tune, Zoom, Pan, Controls At Your Fingertips
  • Ergonomically Optimized Controls With Full Dual VFO
  • Up To 14MHz Spectrum / Waterfall Bandwidth
  • Real-Time Spectrum / Waterfall
  • External Display Output – Full 1920 X 1200 Resolution
  • Internal Speaker

Full Specifications

  • 4 Independent Band/Mode Receivers (Max)
  • 1/2 kHz Reciprocal Mixing Dynamic Range (RMDR): 110/115 dB
  • ADC Bits/Sampling Rate: 16/245.76 Msps
  • Frequency Coverage: 30 kHz-54 MHz
  • Amateur Band Preselectors: 7th Order Contest Bands, 3rd Order Other
  • Cable-less Digital Audio (DAX/DAX IQ) Channels: 4/4
  • Receive Only Ports (Base/Including XVTR Ports): 2/4
  • Full Duplex RX/TX Operation
  • Simultaneous Receive on Two Antennas (e.g. 20m & 6m)
  • Single Radio SO2R Operation – No External Equipment
  • Diversity Reception
  • Internal Touch Panel Display Size Diagonal: 8-inch (6600M)
  • Integrated Display Resolution: 1920×1200 (6600M)

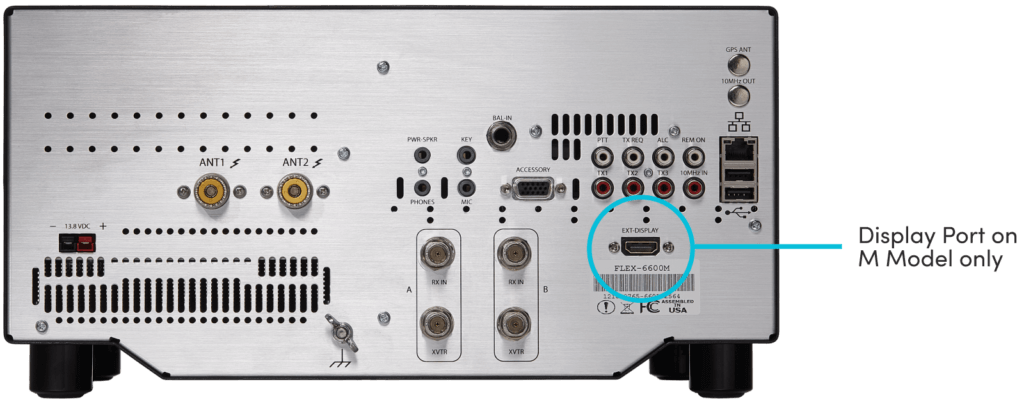

  • External Display Resolution/Connection: 1920×1200/HDMI (6600M)
  • Spectrum/Waterfall Displays (Max): 4
  • Spectrum/Waterfall BW (Min/Max): 1.2 kHz to 14MHz
  • Spectrum Dynamic Range (Max Zoom In): >155 dB
  • Spectrum Resolution Bandwidth (Min): 1.6 Hz/pixel
  • 160m-6m Transmitter Output: 1-100W(25W AM)
  • Harmonic Suppression (Typ): < -60 dBc
  • Transverter Ports: 2
  • Transverter Frequency Coverage/Power: 100 kHz – 54 MHz/0 to +10 dBm
  • Integrated Automatic Antenna Tuner Range: 3:1 SWR
  • Continuous MARS/CAP Coverage Optional
  • Modes (Note 1) SSB, CW, AM, SAM, FM, FREE-DV, RTTY, DIGITAL
  • Integrated Remote Operation
  • Maestro, PC, MAC, iPhone, & iPad Client Options
  • Internal Speaker/Power: 2W Class D (6600M)
  • Frequency Stability: (0C – 50C) 0.5ppm (TCXO)
  • GPS Disciplined Oscillator: Optional 5 x 10-12 Over 24 Hours
  • External 10MHz Reference Input
  • Power Supply Requirements: 13.8 VCDC +/- 15% (14 VDC Nom)
  • Dimensions: 6.74″H (17.1 cm) x 14″W (35.6 cm) x 13.25″D (33.7 cm)

Note 1: RTTY and other digital modes use 3rd party software over DAX channels.
