Primary Applications

High Dynamic Range,
Low Power

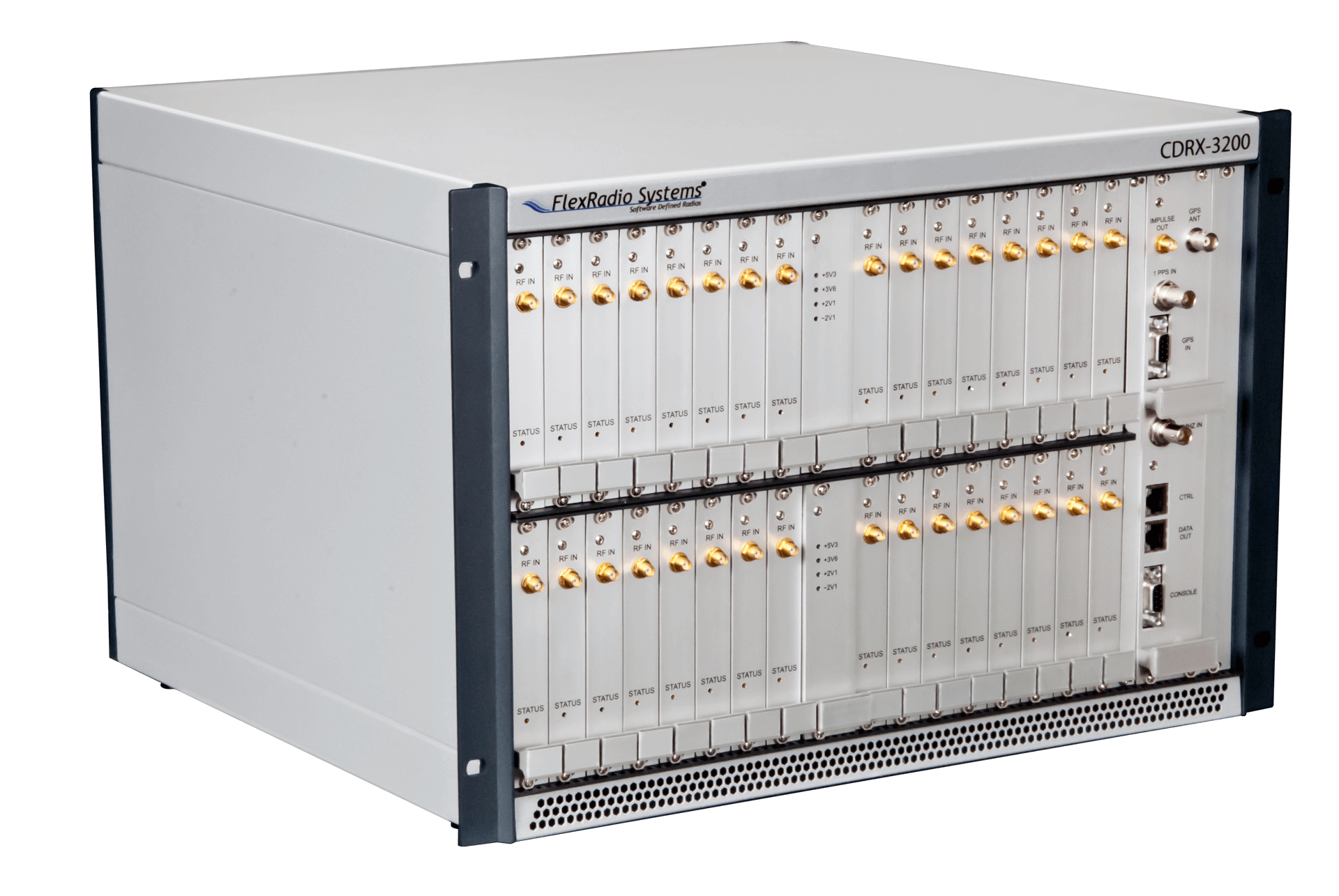

The CDRX-3200 provides up to 32 synchronous receivers that deliver >100dB IMD DR3 (100 Hz tone spacing, 500 Hz detection bandwidth) for less than 150W of power dissipation.

Maximum Deployment Flexibility
at Minimal Cost

Want to learn more? For more information, contact FlexRadio Commercial Sales.

CDRX-3200 Specifications

 Receiver
  • Channels: 1 to 32
  • Frequency Range: 100 kHz to 100 MHz in 250mHz steps (under-sampling above 71 MHz)
  • Conversion: Direct conversion quadrature base-band sampling (Flex-CMQSD technology)
  • Bandwidths: 6 kHz, 15 kHz, 200 kHz
  • ADC Sampling Rate: 200 ksps
  • ADC Resolution: 24 bit
  • DDS Clock: 1 GHz
 Mechanical
  • RF Shielded Enclosure: Rack mountable
  • Height: 12″ (7U Nominal height)
  • Width: 17.75″ (Nominal 19″ rack mounting)
  • Depth: 17.75″ (Including front panel SMA connectors)
 Data Output
  • Data I/O Format: 32 bits per channel streaming I/Q in VITA-49 format over UDP/IP
  • Data Output Transport: 1000Base-T (Gigabit) Ethernet
  • Bandwidth per Channel: 13.5 Mb/s
  • Streaming Data Target: Selectable by channel
  • Time Stamp Resolution: 1 ns
  • Control Interface: VITA-49 style TCP/IP
  • Firmware Updates: Update over Ethernet
  • Streaming Data I/O Connector: RJ-45 Female
  • Control Connector: RJ-45 Female
 Environmental
  • Operating Temperature Range: 0 degrees Celsius to +40 degrees Celsius
  • Optimal Performance Temp Range: +10 degrees Celsius to +30 degrees Celsius
  • Operating Humidity: 5% to 95%
 Integrated GPS Engine
  • GPS Receiver Type: 12-channel GPS L1, 1575.42 MHz, C/A 1.023 MHz Timing-Optimized Receiver
  • GPS Antenna Gain: Active antenna, 18 dB to 36 dB gain
  • GPS Antenna Voltage: 3V / 5V Selectable
  • GPS Antenna Connector: BNC Female (Note: GPS antenna not included)
 Electrical
  • Input Voltage Range: 85 – 265 VAC single phase or 120 – 370 VDC
  • Input Frequency Range: 47 – 63 Hz
  • Input Power Requirement: 150 Watts Max
  • Input Fuse Rating: 3A
  • Input Connector: IEC 60320 – C14 Panel Mount
  • Optional Low Voltage DC Input: 12VDC +/-5%
