The First SO2R Tuner to Hit the Waves

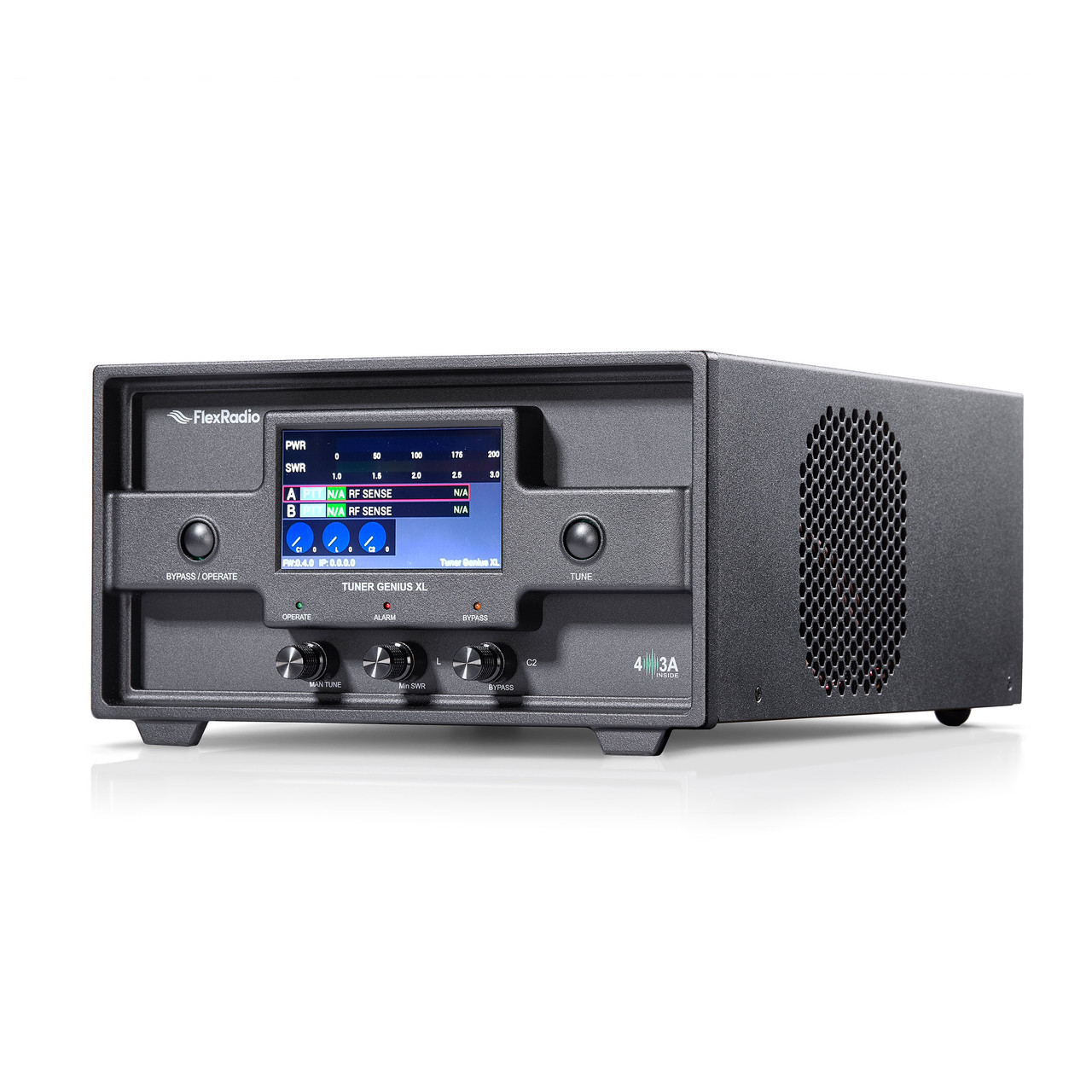

Introducing the Tuner Genius XL. The first SO2R Tuner in the amateur market. Also, soon to be available in a 1×3 version. The Tuner Genius XL is a full frequency coverage tuner from 1.8 MHz to 54 MHz with the ability to tune up to 10:1 SWR.

With the ability to handle up to 2000W ICAS of power, the Tuner Genius XL is built to high quality “broadcast industry” commercial standards.

Ease of Operation

All Tuner Genius XL functions can be controlled either from the front panel of the tuner or using a Windows computer software application. This allows the Tuner Genius XL to be placed off your desktop if needed. High precision “peak responding” RF power and SWR meter displays are also provided, therefore, you no longer need a separate Watt/SWR meter device in your shack.

Fully Integrated

The Tuner Genius XL is fully integrated with the Power Genius XL RF amplifier and ALL FLEX-6000 series HF transceivers. All FlexRadio products utilize a standard LAN communications protocol and with the published API you can write your own applications for your tuner setup. Though you can use your Tuner Genius XL with any modern HF radio on the market today, when used in conjunction with a Power Genius XL and a FLEX-6600 or FLEX-6700 transceiver, you gain full SO2R (single operator, 2 radio) operation for your station including support for multiFLEX™ operation. Frustration-free contesting goes hand-in-hand with reduced station costs and ease of set-up.

Tuner Feature Highlights:

  • Integrates with any transceiver
  • Designed to complement the FLEX-6000 series transceivers and Power Genius XL™ amplifier
  • Seamless SmartSDR™ software integration
  • Complete control and monitoring (over LAN) from an intuitive Windows™ application
  • Contest ready – the ONLY single-radio SO2R solution in amateur radio
  • High accuracy SWR and power meter measurements in bypass mode…and much more


  • Weight: 960 oz
  • Width: 11.8 in
  • Depth: 13.8 in
  • Height: 5.9 in

Tuner Specifications

  • Tuning: Fully automatic and manually tuned operation
  • Frequency Range: 1.8 to 54 MHz continuous
  • Radio Interface: Works with all radios using Flex radio LAN, RS232, CI-V, BCD, Pin-to-Band (PTB), or use the built in frequency counter
  • Alarms and Warnings: Low drive, Frequency Out of Range, Wrong band, and High power
  • Matching Range: Up to 10:1 SWR. Resonant antenna frequency range memories will bypass the tuner automatically
  • Tuning Time: Tuning solutions (2 to 12 seconds) are stored in memory automatically. Stored memory switching is 20ms
  • Tuning Power Requirement: 10W – 200W

User Interface

  • Large 4.5” color touch screen display
  • Front panel controls for manual switching, tuning & configuration
  • Windows™ utility application for over the network control and configuration

RF Characteristics

  • Nominal Impedance: 50-Ohm unbalanced
  • Nominal Operating Power: Up to 2000W
  • Duty Cycle: 100% ICAS
  • Protection: Intelligent SWR and power derating

1×3 Version

  • Inputs and Outputs: 1×3 matrix (1 in, 3 out)
  • Switching: Matrix, manual or automatic by frequency / band

SO2R Version

  • Inputs and Outputs: 2 in, 2 out – each input is paired with one output
  • Switching: Non-matrix SO2R, manual or automatic by frequency/band
  • Connector type: UHF/PTFE (SO-239A)

Mechanical / Electrical

  • Power Supply: 12 – 16V DC @2A
  • Dimensions: 11.8” W x 13.8” D x 5.9” H (30cm W x 35cm D x 15cm H)
  • Weight: 15.4 lbs (7kg)


  • Temperature Range: -4F (-20C) to +122F (+50 C)
  • Humidity: up to 98 percent (non-condensing)
  • Altitude (ASL): up to 10,000 feet (3,050m)

This device has been authorized by the rules of the Federal Communications Commission.
