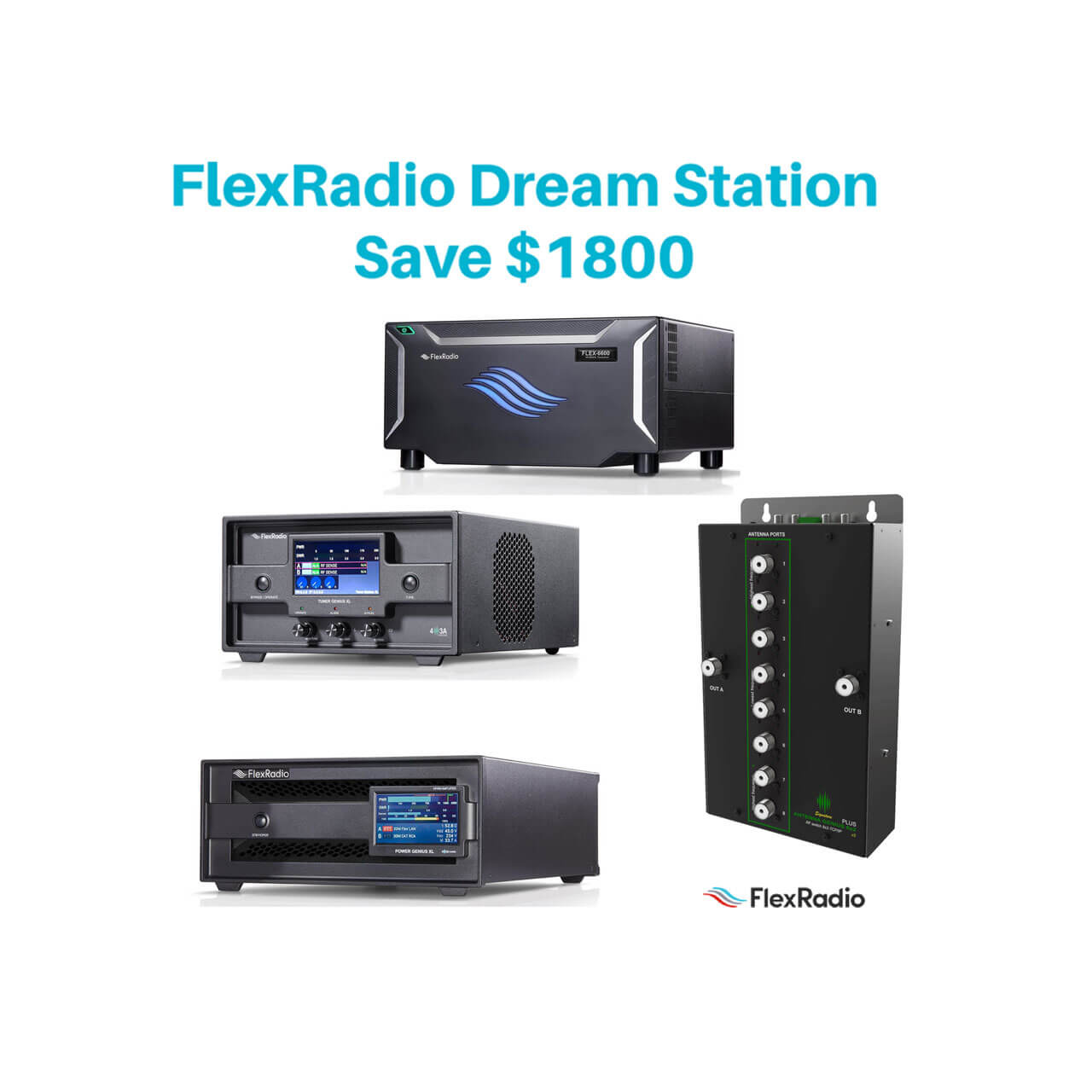

Experience the ultimate in ham radio performance with the FlexRadio Dream Station

A complete package that redefines what’s possible in amateur radio communication. This powerful ensemble includes the FLEX-6600 HF/6m transceiver, delivering exceptional performance with its software-defined architecture and advanced DSP capabilities.

Paired seamlessly with the Power Genius XL Amplifier, you’ll have legal limit power at your fingertips for reaching the farthest corners of the globe.

The Tuner Genius XL ensures efficient tuning across various antennas, while the Antenna Genius 8×2 offers effortless antenna switching.

Elevate your station to the next level of innovation and versatility with the FlexRadio Dream Station, bringing your ham radio experience to new heights of excellence.

Includes:

The FLEX-6600 offers the ultimate performance direct sampling SDR technology and the best value for the serious HF/6m operator.

The FLEX-6600 model is designed for the Ham who wants to operate the radio exclusively as a server from PC, laptop, Maestro, Mac, or iOS clients — whether local or remote. Both models share the same game-changing band awareness, industry-leading phase noise performance/ receiver dynamic range, and brick wall filters to give you the advantage in the most competitive DXing or contesting activities while maximizing your fun in casual operations. With a PC, laptop, or Mac client, you can utilize up to four 14 MHz spectrum/waterfall displays and independent band/mode receivers to revolutionize your view of the bands, especially on digital modes. Antenna Tuner is included.

Contest grade filters, ultra-low spurious emissions, and the ability to operate full duplex cross band on two antennas let you transmit on one band while receiving on another — no external equipment required. Even switch to synchronous diversity reception when needed to help you pick out the weak ones in the midst of QRM. By adding FlexRadio’s new Power Genius XL™ LDMOS solid-state amplifier a complete legal limit, all mode SO2R station is now practical with one radio, one amp and only three interconnect cables — half the cost and none of the complexity.

FlexRadio’s industry-leading SmartSDR™ software offers compatibility across the entire FLEX-6000 Signature Series family to deliver continuous leveraged software enhancement. And you can use the latest SmartLink™ technology to access your radio virtually anywhere from any SmartSDR compatible client with only a login and password — even your iPhone.

  • 100W PEP HF-6M Operation
  • All Modes/All Bands
  • Integrated Remote Operation With Maestro, PC/Laptop, Mac, iPad® Or iPhone®
  • 4 Independent Band / Mode Receivers
  • Full Duplex Cross-Band Operation
  • True Diversity Reception
  • Two Receive-Only Ports
  • Two Transverter Ports
  • Economical SO2R Solution – (OTSPR) Support In One Radio
  • Contest Band Filters: >50 dB Rejection
  • Direct Sampling SDR 245.76 Msps – 16 Bit
  • 115 dB 2kHz RMDR
  • >155 dB Dynamic Range
  • Built In Antenna Tuner
  • 10 MHz Reference Input
  • Optional GPSDO Option for ultra high frequency precision and accuracy
  • Optional Continuous MARS/CAP Coverage with Extended Transmit Filter

Specs

  • Weight: 1424 oz

Receiver

  • 4 Independent Band/Mode Receivers (Max)
  • 1 / 2 kHz Reciprocal Mixing Dynamic Range (RMDR): 110/115 dB
  • ADC Bits/Sampling Rate: 16/245.76 Msps
  • Frequency Coverage: 30 kHz-54 MHz
  • Amateur Band Preselectors: 7th Order Contest Bands, 3rd Order Other
  • Cable-less Digital Audio (DAX/DAX IQ) Channels: 4/4
  • Receive Only Ports (Base/Including XVTR Ports): 2/4
  • Full Duplex RX/TX Operation
  • Simultaneous Receive on Two Antennas (e.g. 20m & 6m)
  • Single Radio SO2R Operation – No External Equipment
  • Diversity Reception

 Transmitter

  • 160m-6m Transmitter Output: 1-100W(25W AM)
  • Harmonic Suppression (Typ): < -60 dBc
  • Transverter Ports: 2
  • Transverter Frequency Coverage/Power: 100 kHz – 54 MHz/0 to +10 dBm
  • Integrated Automatic Antenna Tuner Range: 3:1 SWR
  • Continuous MARS/CAP Coverage Optional

 General

  • Modes1 SSB, CW, AM, SAM, FM, RTTY, DIGITAL
  • Integrated Remote Operation
  • Maestro, PC, MAC, iPhone, & iPad Client Options
  • Frequency Stability: (0C – 50C) 0.5ppm (TCXO)
  • GPS Disciplined Oscillator: Optional 5 x 10-12 Over 24 Hours
  • External 10MHz Reference Input
  • Power Supply Requirements: 13.8 VCDC +/- 15% (14 VDC Nom)
  • Dimensions: 6.74″H (17.1 cm) x 14″W (35.6 cm) x 13.25″D (33.7 cm)

1. RTTY and other digital modes use 3rd party software over DAX channels.

Simply Beautiful

  • No PC required to operate the FLEX-6600M*
  • 8 inch 1920 x 1200 IPS Display
  • Up to four independent receivers
  • Up to four 14MHz spectrum displays
  • Ergonomic workflow
  • Ergonomically spaced/single-function controls

Anywhere, Anytime, From Any Of These Devices:

With SmartLink and a FLEX-6600, you can operate your radio from almost anywhere! Just take an iPhone, iPad, Mac, Laptop, or Maestro with you and instantly connect to your radio with virtually no setup required.

Plug & Play Remote**

  • No complex setup required
  • Operate anywhere, any time
  • Use a Maestro, Mac, iPad, iPhone or Laptop
  • Across the country or across the world

Best in Class Performance

  • 115db RMDR
  • No listening fatigue
  • Ultra-Low Phase Noise
  • Full Break-in QSK CW
  • Diversity Reception
  • SO2R in a box
  • Brick Wall Filters
  • Stunning transmit audio

Backed by an Amazing Suite of Software

  • SmartSDR for the M Model Radio
  • SmartSDR for Windows
  • SmartSDR for Mac
  • SmartSDR for iOS
  • SmartSDR CAT
  • DAX

*A PC may be required for use of 3rd party software such as loggers and digital modes programs
**SmartLink Remote Requires SmartSDR V2.x License. Requires an Internet connection.
