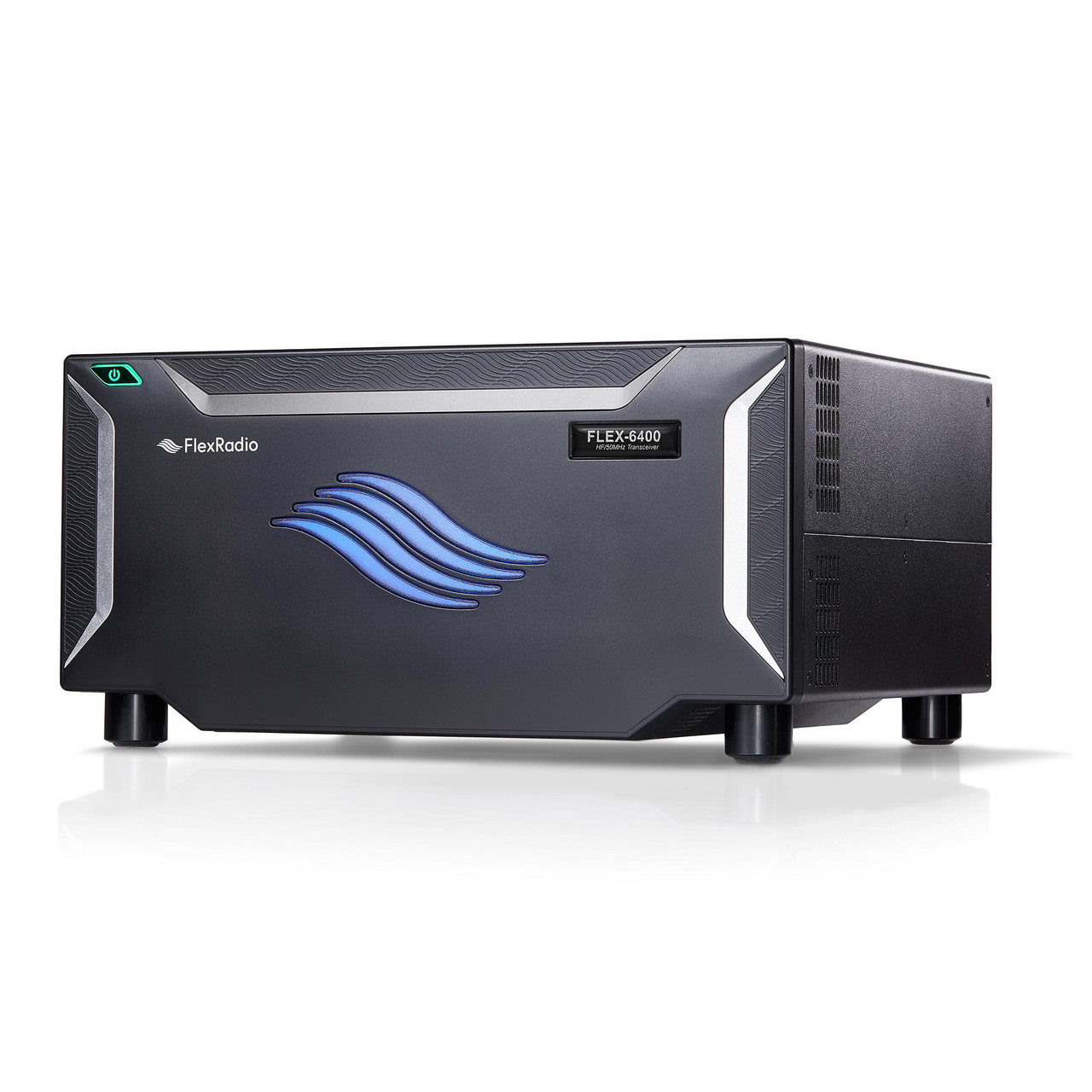

Certified Pre-Loved FLEX-6400 Signature Series SDR Transceiver w/ Automatic Antenna Tuner (Out of Stock)

FlexRadio Systems

SKU: OBI-FLEX-6400-ATU

0 reviews

MSRP: $2,298.00 $2,418.00 $2,298.00

MSRP:

You must be logged in to create a wish list
Log in
Register

Out of stock!

0% APR financing available for 6 months *

As low as $100.49 / month ** Select Bread Financing at checkout. Details Purchasing programs International resellers

Certified Pre-Loved FLEX-6400 radios are sold in excellent condition with a one year warranty. They have been through a full factory test and recalibration.

HF/50 MHz Direct Sampling Software Defined Radio Transceiver

The FLEX-6400 with Automatic Antenna Tuning offers the latest direct sampling SDR technology at an economical price for the general HF/6m operator yet they offer great performance for chasing DX and contesting. The FLEX-6400 model is designed for the Ham who wants to operate the radio exclusively as a server from PC, laptop, Maestro, Mac, or iOS clients — whether local or remote. Both models share the same game changing band awareness, industry leading phase noise performance, brick wall filters, and legendary audio performance to deliver you the most fun across a wide variety of operating styles.

With a PC, laptop, or Mac client you can utilize up to two 7 MHz spectrum/waterfall displays and independent receivers to revolutionize your view of the bands. Its two receivers can be placed simultaneously on any band and mode with instant QSY between VFOs. Digital mode operation is a dream with no sound cards, cables or boxes needed.

FlexRadio’s industry leading SmartSDR™ software offers compatibility across the entire FLEX-6000 Signature Series family to deliver continuous leveraged software enhancement. And you can use the latest SmartLink™ technology to access your radio virtually anywhere from any SmartSDR compatible client with only a login and password — even your iPhone.

Features

100W PEP HF-6m operation
All modes/all bands
Integrated Remote Operation with Maestro, PC/ Laptop, iPad^® or iPhone^®
2 Independent Band / Mode Receivers
Full Duplex Cross-Band Operation
Transverter Port
Receive-Only Port
Direct Sampling SDR 122.88 Msps – 16 bit
115 dB 2kHz RMDR
10 MHz Reference Input with GPSDO option
Optional MARS/CAP/SHARES Expansion
Optional Antenna Tuner

Full Specifications

Specs

Weight: 256 oz
Width: 18 in
Depth: 19 in
Height: 12 in

Receiver

Independent Band/Mode Receivers (Max): 2
1/2 kHz Reciprocal Mixing Dynamic Range (RMDR): 110/115 dB
ADC Bits/Sampling Rate: 16/122.88 Msps
Frequency Coverage: 30 kHz-54 MHz
Amateur Band Preselectors: 3rd Order
Cable-less Digital Audio (DAX/DAX IQ) Channels: 2/2
Receive Only Ports (Base/Including XVTR Port): 1/2
Full Duplex RX/TX Operation

Spectrum/Waterfall

Internal Touch Panel Display Size Diagonal: 8-inch (6400M)
Integrated Display Resolution: 1920×1200 (6400M)
External Display Resolution/Connection: 1920×1200/HDMI (6400M)
Spectrum/Waterfall Displays (Max): 2
Spectrum/Waterfall BW (Min/Max): 5 kHz to 7MHz
Spectrum Dynamic Range (Max Zoom In): >145 dB
Spectrum Resolution Bandwidth (Min): 5.85 Hz/px

Transmitter

160m-6m Transmitter Output: 1-100W(25W AM)
Harmonic Suppression (Typ): < -60 dBc
Transverter Ports: 1
Transverter Frequency Coverage/Power: 100 kHz – 54 MHz/0 to +10 dBm
(OPTIONAL) Integrated Automatic Antenna Tuner Range: 3:1 SWR
Continuous MARS/CAP Coverage with Optional Filter

General

Modes (Note 1) SSB, CW, AM, SAM, FM, FREE-DV, RTTY, DIGITAL
Integrated Remote Operation (SmartLink)
Maestro, PC, MAC, iPhone, & iPad Client Options
Internal Speaker/Power 2W Class D (6400M)
Frequency Stability (0C – 50C) 0.5ppm (TCXO)
GPS Disciplined Oscillator Optional 5 x 10-12 Over 24 Hours
External 10MHz Reference Input
Power Supply Requirements 13.8 VCDC +/- 15% (14 VDC Nom)
Dimensions 6.74″H (17.1 cm) x 14″W (35.6 cm) x 13.25″D (33.7 cm)

More info

Simply Beautiful

No PC required to operate the FLEX-6400M*
8 inch 1920 x 1200 IPS Display
Up to two independent receivers
Up to two 7MHz spectrum displays
Ergonomic workflow
Widely spaced / single function controls

Plug & Play Remote**

No complex setup required
Operate anywhere, any time
Use a Maestro, iPad, iPhone or Laptop
Across the country or across the world
Complete control

Anywhere, Anytime, From Any Of These Devices:

With SmartLink and a FLEX-6400/FLEX-6400M you can operate your radio from almost anywhere! Just take an iPhone, iPad, Laptop or Maestro with you and instantly connect to your radio with virtually no setup required.

Best in Class Performance

115db RMDR
No noise fatigue
Ultra Low Phase Noise
Full Break-in QSK CW
Brick Wall Filters
Stunning transmit audio

Backed by an Amazing Suite of Software

*A PC may be required for use of 3rd party software such as loggers and digital modes programs. **SmartLink Remote Requires SmartSDR V2.x License. Requires internet connection. 1. RTTY and other digital modes use 3rd party software over DAX channels.
